JUMP® 20

The JUMP 20 is a vertical takeoff and landing (VTOL), fixed-wing unmanned aircraft used to provide advanced multi-sensor intelligence, surveillance, and reconnaissance (ISR) services. Delivering 13+ hours of endurance and an operational range of 185 km (115 mi), the JUMP 20 is ideal for multi-mission operations. Runway independent, the system can be set up and operational in less than 60 minutes without the need for launch or recovery equipment. With a useable payload capacity of up to 30 pounds, the JUMP 20 offers flexible payload options utilizing industry leading imaging sensors such as ARCAM 45D, long range EO/MWIR as well as onboard tracking, stabilization and video processing. In addition to the multi-mission payload bay and superior optics, the JUMP 20 features a common autopilot and ground control system architecture providing a highly customizable, modular platform which can be custom-configured to meet operational or customer requirements.


Link Range

185 km (115 mi)

Dimensions

18.8 ft (5.7 m)
9.6 ft (2.9 m)

Weight

215 lb MGTOW (97.5 kg)
Fuel & Payload

Endurance

13+ hr

Useable Payload Capacity

Up to 30 lb (13.6 kg)

Power Supply

MOGAS, 190cc EFI Engine
Battery Powered Jump


ACETM Autonomous Control Engine

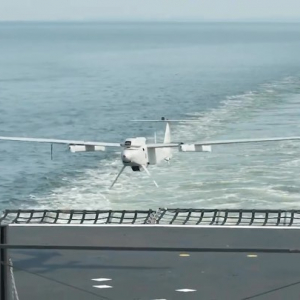

ACE™ navigation landing of JUMP-20 UAS on sea platform

ACE delivers precision launch and landing from confined spaces, moving vehicles, or vessels in motion with seamless vision-based navigation. ACE provides automated, centimeter-level precision landings in dynamic environments, without relying on GPS, for any UAS.

Learn More


Runway Independent

Launch anytime, anywhere. The ultra-portable VTOL launch and recovery system eliminates the need for bulky or expensive equipment, enabling rapid deployment in any environment in less than 60 minutes.

Class Leading Endurance

The JUMP 20 delivers 13+ hours of endurance, operational altitude of 17,000 ft and a range of 185 km, the low visual and acoustic signature makes it ideal for multi-mission operations. Whether on the move or emplaced operations, the JUMP 20 delivers class leading endurance and extended range to meet changing customer requirements.

Multi-Mission Payload Bay

With the ability to carry up to 30 lb of additional payload, our Multi-INT/Multi-Domain solutions provide a level of integrated ISR data previously unavailable in a tactical, long endurance UAS platform. Purpose built for maximum payload integration flexibility, the JUMP 20 is infinitely configurable to meet changing user requirements.




Social Media

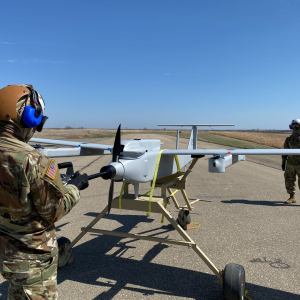

One of the latest instagram posts about jump20

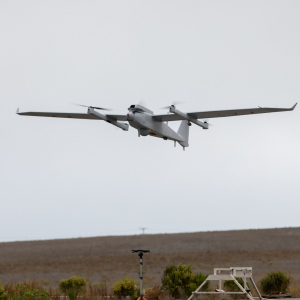

One of the latest instagram posts about jump20

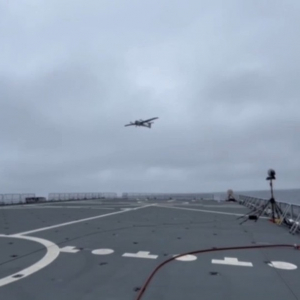

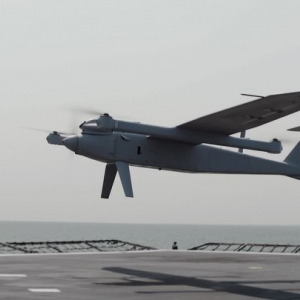

One of the latest instagram posts about jump20

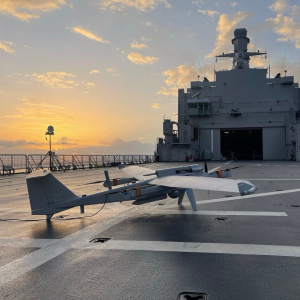

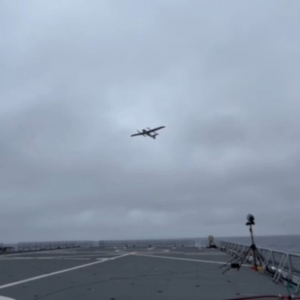

One of the latest instagram posts about jump20

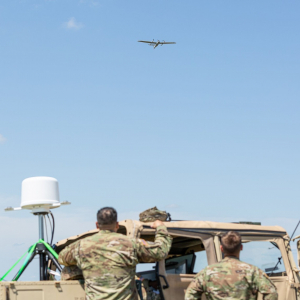

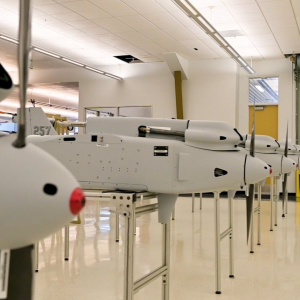

One of the latest instagram posts about jump20

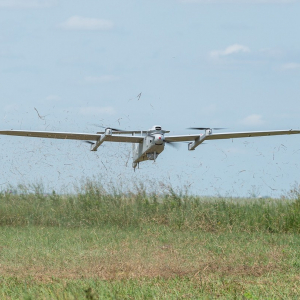

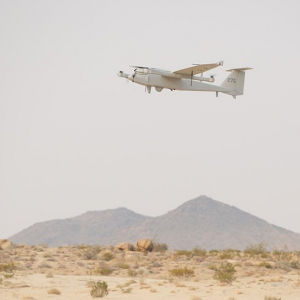

One of the latest instagram posts about jump20

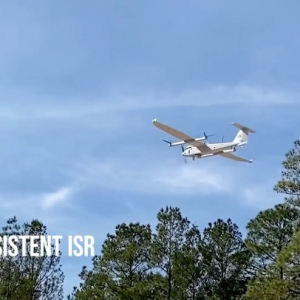

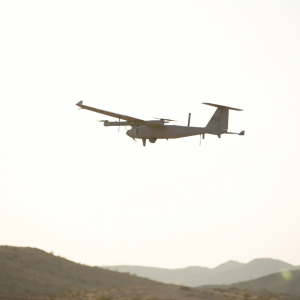

One of the latest instagram posts about jump20
