Mars Helicopter

Ingenuity

AeroVironment’s team of innovative engineers from our MacCready Works Advanced Solutions team worked with NASA/JPL to design and develop a helicopter carried by the Mars rover, Perseverance. The helicopter's name is Ingenuity, and its purpose is to demonstrate the viability of aerial robots for planetary exploration.

The vehicles arrived on Mars in February 2021. Within two months of landing on the surface of Mars, and after traveling 330 meters from its landing site, Perseverance deposited Ingenuity onto Martian soil, where it successfully attempted its maiden voyage – The first flight of an aircraft on another celestial body. Its short hop over the surface of the Red Planet marked a giant leap for robotic technology. Since its maiden voyage, Ingenuity has far exceeded expectations by successfully completing 72 flights!

INGENUITY ON MARS

MISSION DURATION
February 18 2021 - January 18 2024

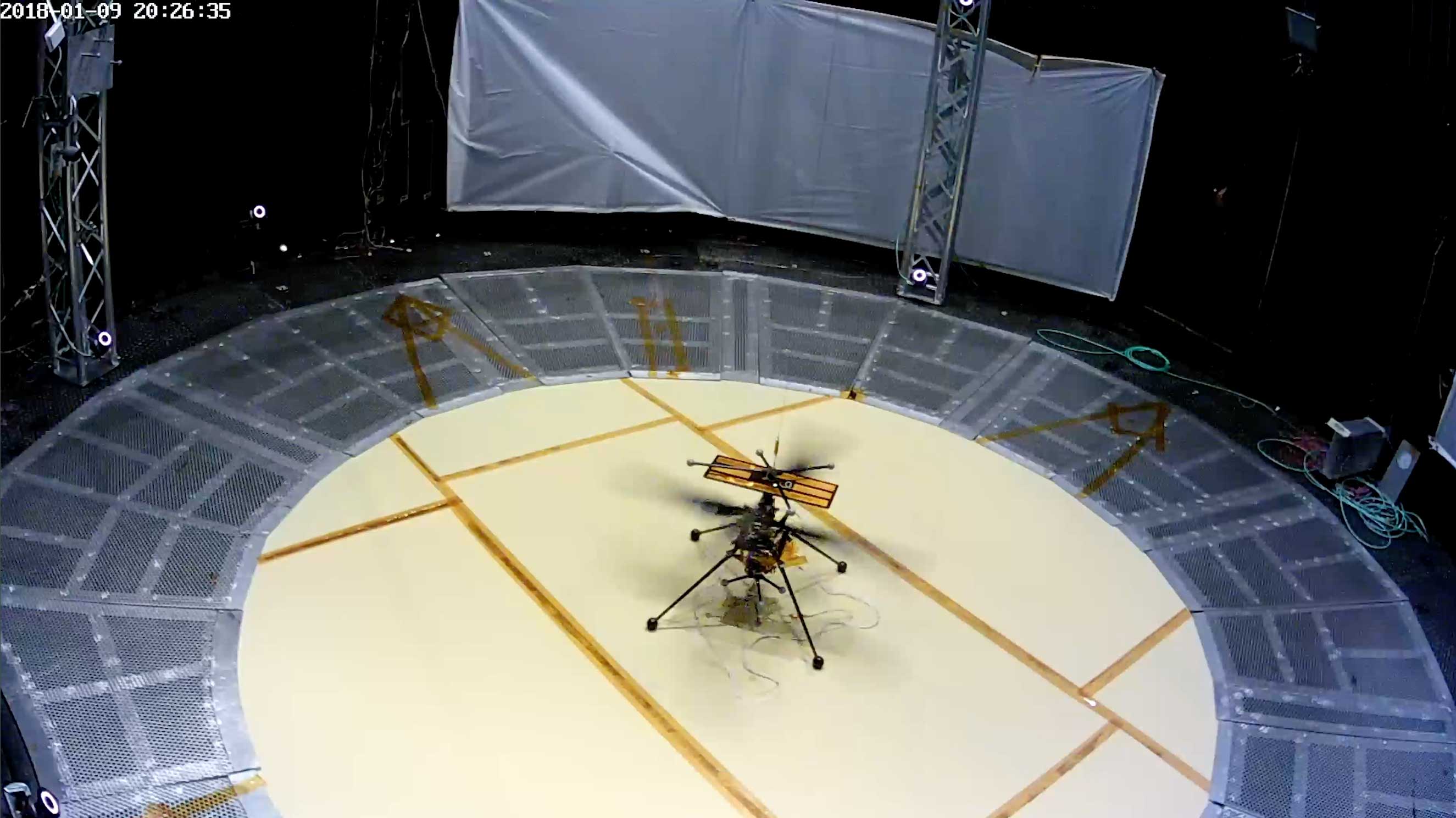

Ingenuity Atmospheric Test

The second flight test of EDM1 in the 25 foot space simulator at Mars atmosphere. The vehicle has a gravity offload tether to mimic Mars gravity (1/9/2018)

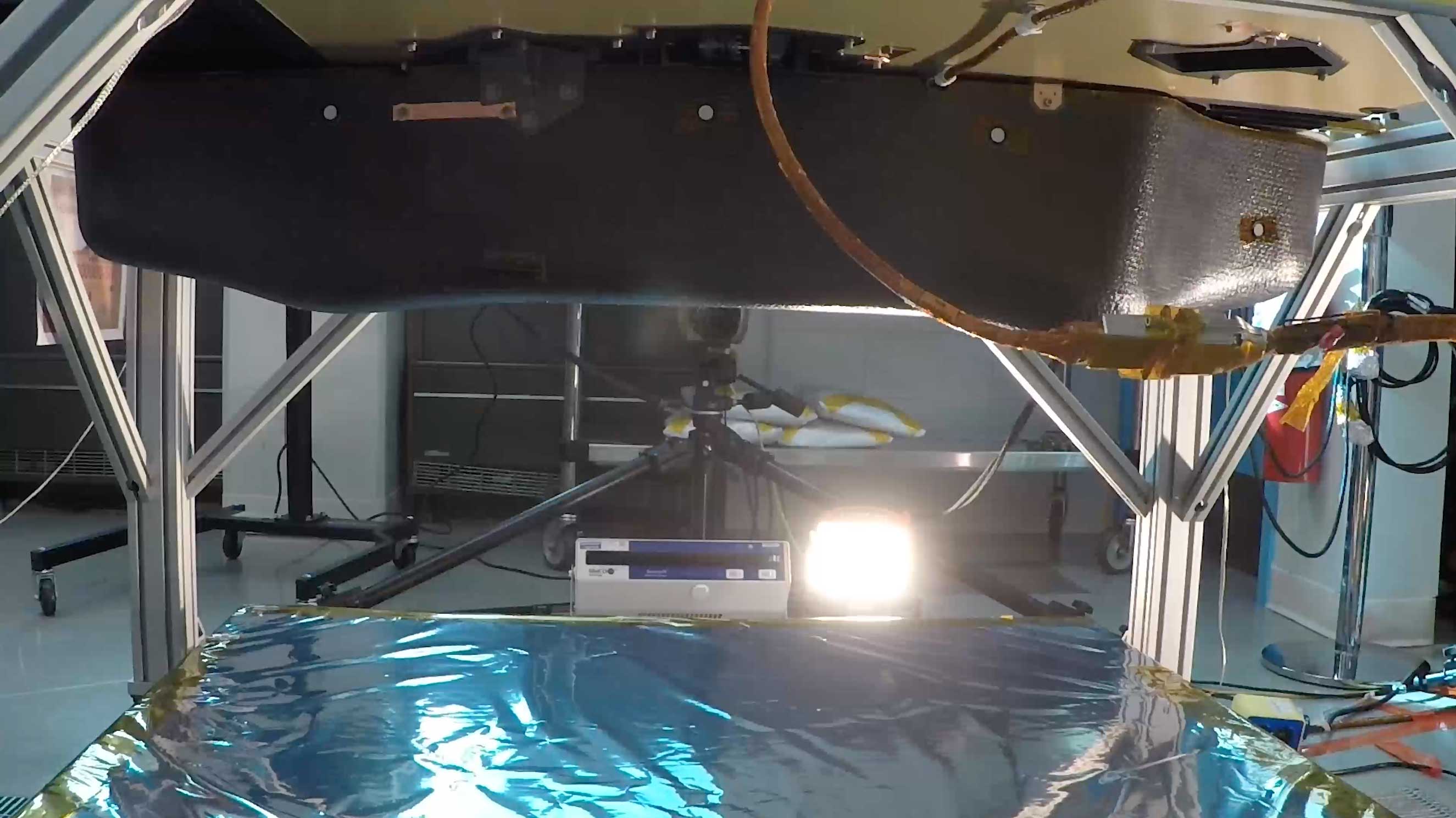

Ingenuity Deployment Test

Test of delivery of Ingenuity with the Mars Helicopter Deployment System. First the dust cover is released, then the lower launch lock is released allowing the helicopter to rotate down. The legs are released and then the helicopter is dropped to the surface.

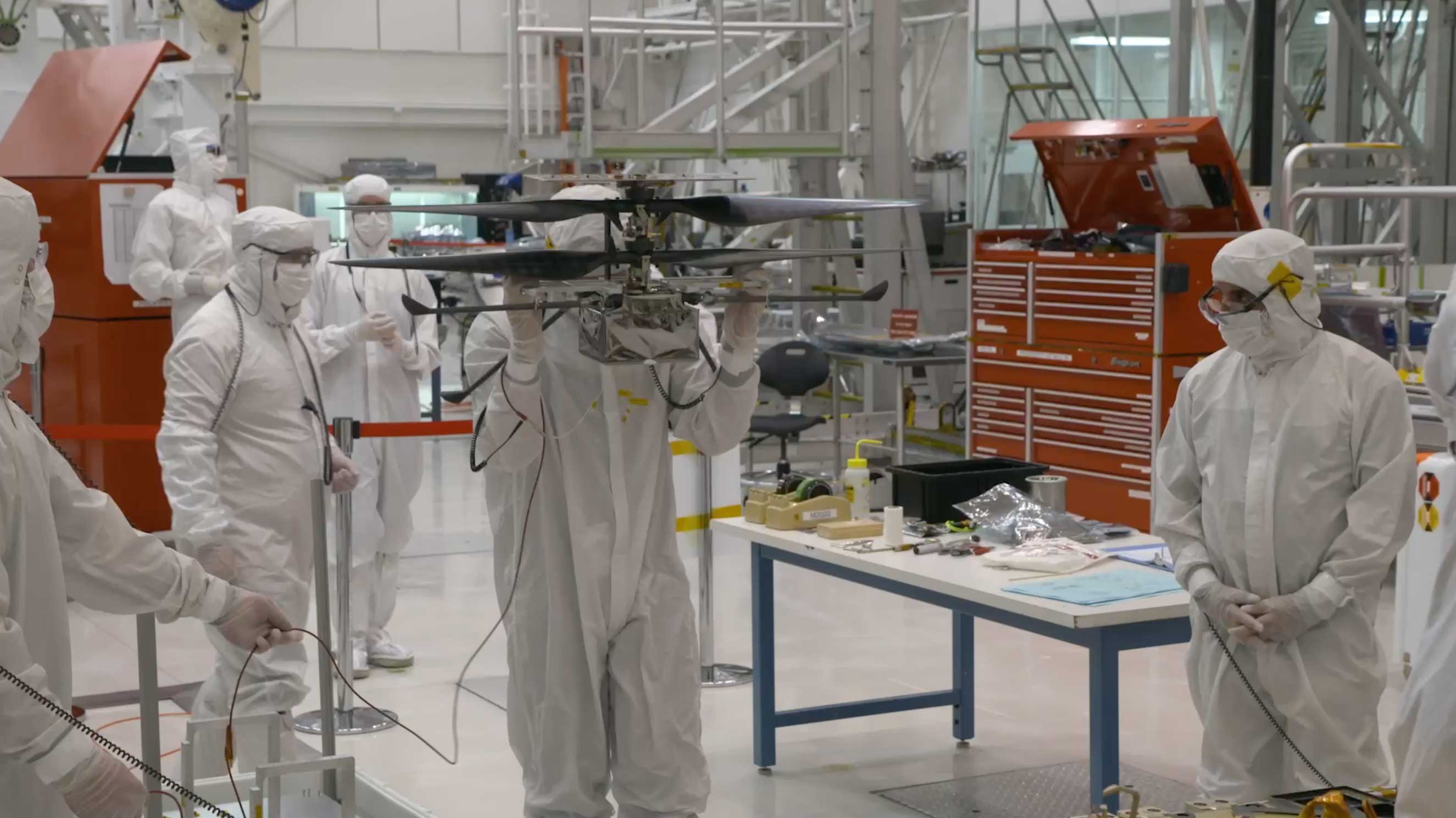

Installing Ingenuity

Installing Ingenuity onto the belly pan of the rover. The belly pan is then installed, as a unit, onto the rover.

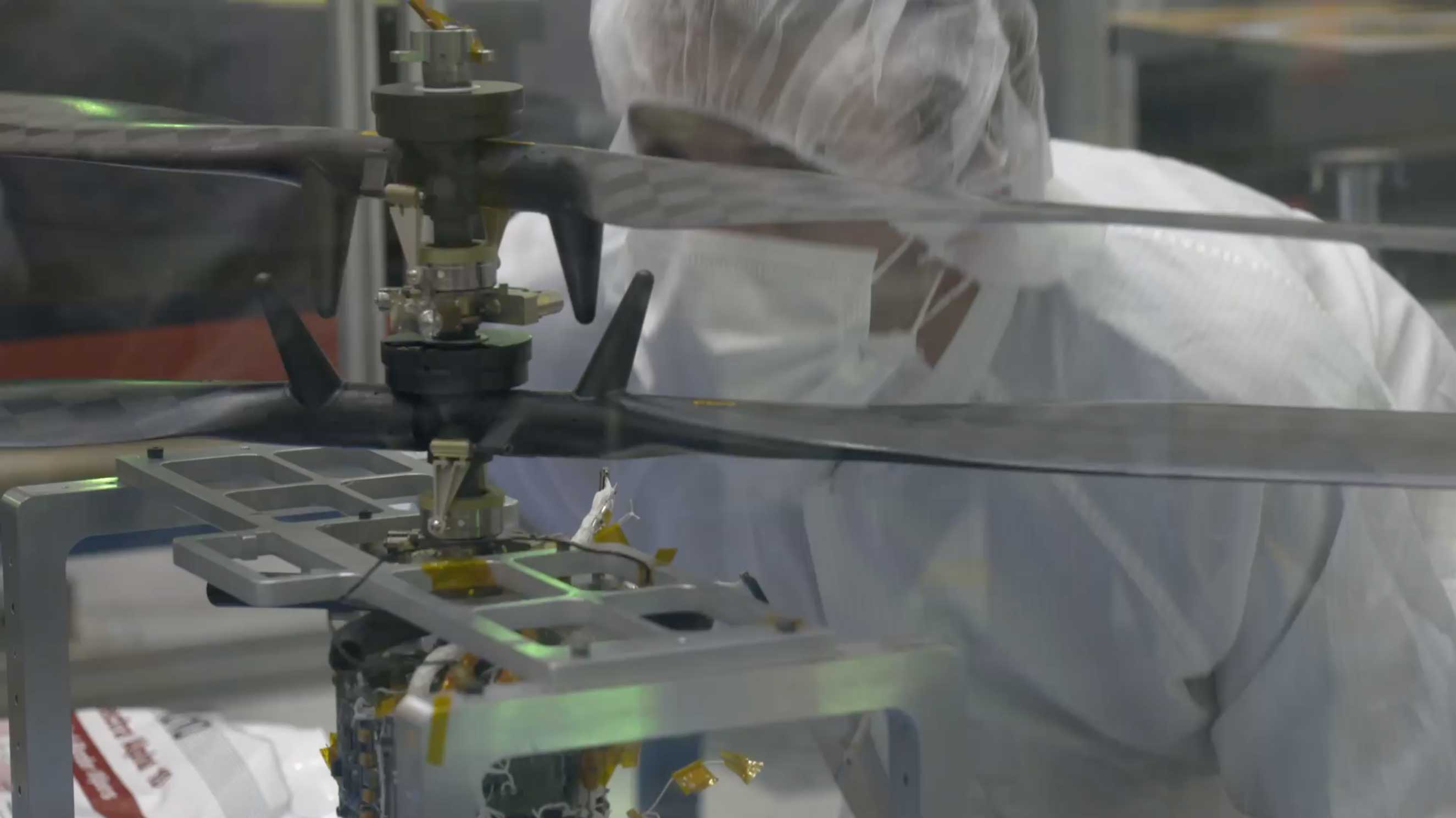

Pitch Bearing Inspection

Ben Pipenberg, AeroVironment Aeromechanical Engineer, Sr., inspecting Ingenuity’s pitch bearings after a test.



Technical Specs

Mass
1.8 kilograms
Weight
4 pounds on Earth; 1.5 pounds on Mars
Width
Total length of rotors: ~4 feet (~1.2 meters) tip to tip
Power
Solar panel charges Lithium-ion battery, providing enough energy for up to 170 seconds of flight time
Blade Span
Just under 4 feet (1.2 meters)
Flight Range
Up to 2,050 feet (625 meters)
Flight Altitude
Up to 33 feet (10 meters)
Flight Environment
Thin atmosphere,
less than 1% as dense as Earth's

INGENUITY FACTS


Name
Ingenuity
Initial Job
A technology demonstration to test the first powered flight on Mars. The helicopter rode to Mars attached to the belly of the Perseverance rover.
Launch
July 30, 2020
Cape Canaveral Air Force Station, Florida
Delivery Date on Mars
February 18, 2021
Landing Site
Jezero Crater, Mars
First Flight
April 19, 2021
Total Missions
72
Distance Flown
11 miles (17 km)
Time Flown
~128.8 minutes
SOLs Achieved Since Deployment
1035



In the News

Final Flight #72

January 18, 2024

The Ingenuity Mars helicopter has flown its final flight.

View full article

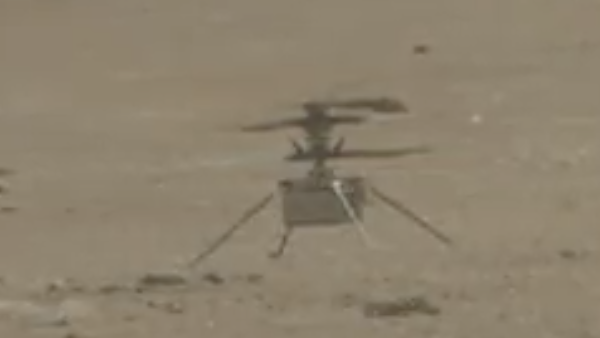

Flight 71

January 9, 2024

The Mars Helicopter landed successfully, but earlier than expected.

View full article

67th Flight

December 4, 2023

Ingenuity completed Flight 67 over the weekend, flying 393 meters for more than two minutes. It repositioned itself to get ready for future flights.

View full article

63rd Flight

October 23, 2023

The Mars Helicopter completed Flight 63 last week, flying for more than 2 minutes and traveling 579 meters - its longest distance since Flight 25.

View full article

Flight 59

September 16, 2023

Ingenuity has set a new record! The Mars Helicopter successfully completed Flight 59, flying its highest altitude yet – 20 meters. The rotorcraft was in the air for 142.59 seconds.

View full article

Flight 57

September 5, 2023

Ingenuity completed Flight 57 over the weekend, traveling north for 713 ft (217 m) for 129 seconds.

View full article

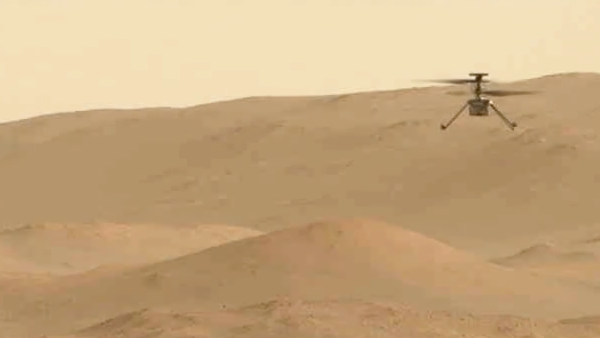

Flight 54

August 17, 2023

NASA's Perseverance Mars rover captured this video of the Ingenuity Mars Helicopter's 54th flight on Aug. 3, 2023.

View full article

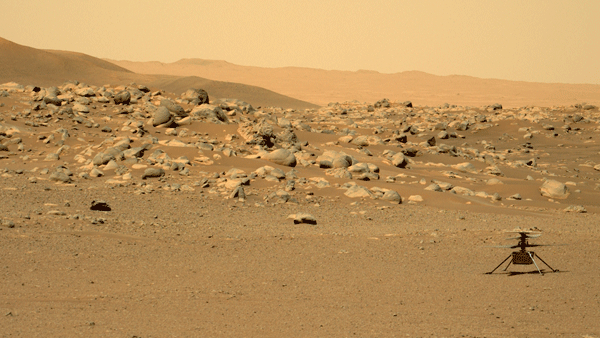

IEEE Spectrum: What Flight 50 Means for the Ingenuity Mars Helicopter

April 8, 2023

Flight 49, which took place last weekend, was its fastest and highest yet—the little helicopter flew 282 meters at an altitude of 16 meters, reaching a top speed of 6.50 meters per second. Not a bad performance for a tech demo that was supposed to be terminated two years ago.

View full article

Incredible Image from Ingenuity

December 10, 2022

NASA's Ingenuity Mars Helicopter acquired this image using its high-resolution color camera during its 36th flight. This camera is mounted in the helicopter's fuselage and pointed approximately 22 degrees below the horizon.

View full article

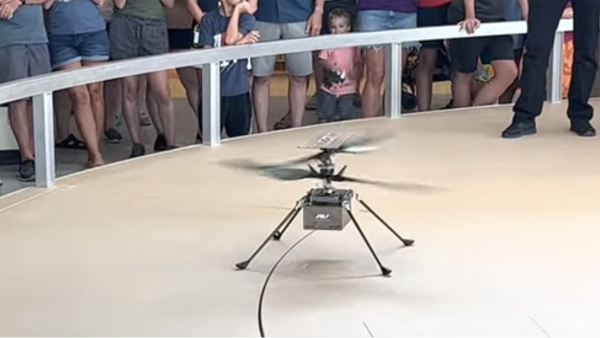

Ingenuity Replica Flown at Wright Brothers Memorial

August 19, 2022

The AV team did a public demonstration of a Ingenuity Mars Helicopter replica on National Aviation Day at the Wright Brothers Memorial.

View full article

NASA’s Pioneering Ingenuity Mars Helicopter Awarded Collier Trophy

April 5, 2022

The National Aeronautic Association has bestowed the prestigious Robert J. Collier Trophy on the team behind NASA’s Ingenuity Mars Helicopter, cementing the pioneering rotorcraft’s place in aerospace history.

View full article

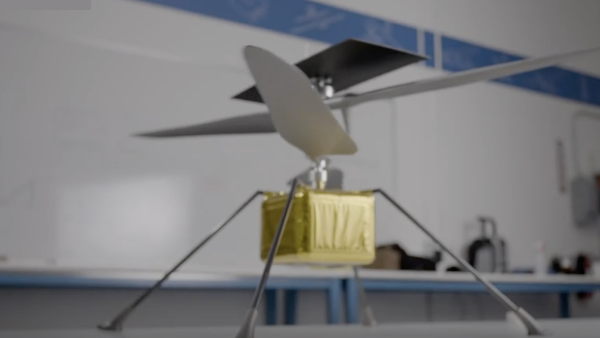

How NASA’s Ingenuity Helicopter Was Developed for Mars Here on Earth

April 9, 2021

The WSJ goes inside the company that partnered with NASA to design and build an aircraft for a completely different atmosphere from Earth.

View full article

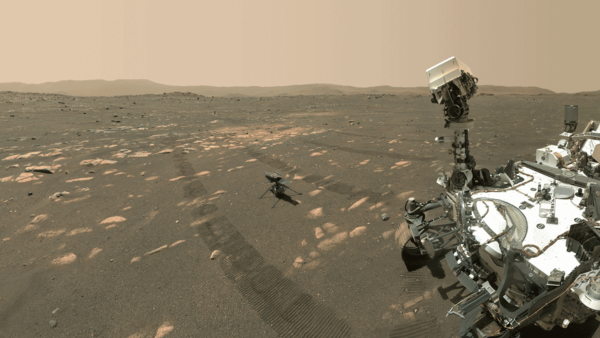

A year After Landing on Mars, One-of-a-Kind Helicopter Developed in Ventura County Still Flying

February 24, 2022

"Ingenuity" helicopter far exceeding expectations; Chopper has now flown nearly four times more missions on Mars than originally planned.

View full article

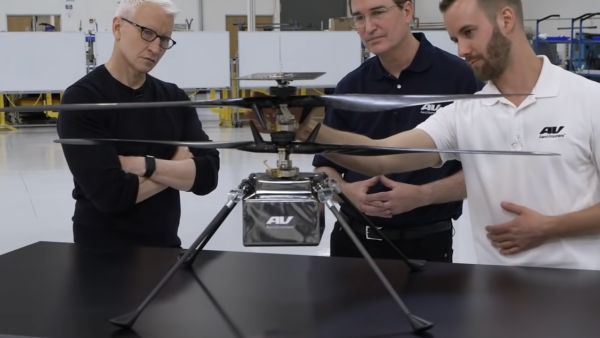

60 Minutes: How NASA’s Ingenuity Helicopter Was Developed for Mars Here on Earth

May 9, 2021

We first told you about the tiny helicopter Ingenuity and the one-ton rover Perseverance nearly a year ago before they left Earth, but they've come a very long way since then.

View full article






Image & Video Credits: Courtesy of NASA/JPL–Caltech
