Titan® MS C-UAS

AI-Powered Multi-Threat C-UAS Defense

Download Data Sheet

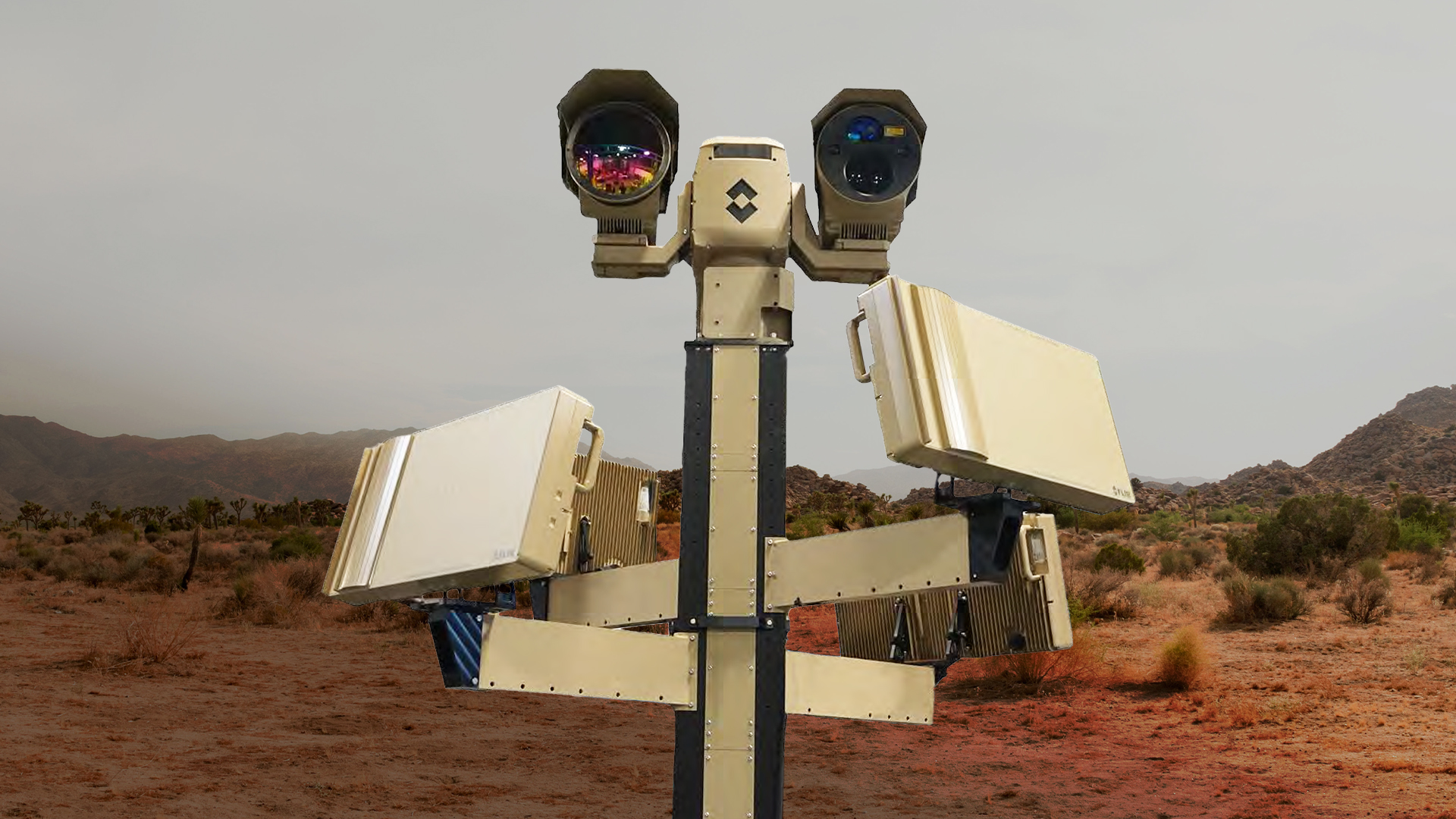

Full-Spectrum Multi-Sensor Protection for Fixed Sites

Titan MS is an AI-powered, multi-sensor fusion solution designed to protect fixed sites against multi threat C-UAS , with multi domain, non kinetic defeat. By fusing advanced AI and ML algorithms from multiple industry-leading sensors, Titan MS enables detection, identification, tracking, defeat, and reporting of RF-controlled and autonomous drones.

The robust command and control interface provides 360° situational awareness, while seamless integration with other C2 platforms ensures adaptable, cross-domain security. Operatable in virtually any environmental condition with minimal maintenance requirements, Titan MS delivers low lifetime cost and uncompromising defense for critical infrastructure and strategic locations.

Titan MS empowers operators with full-time threat classification and mitigation, supporting secure, bidirectional data exchange and external system integration through API/ICD. Its rugged platform meets strict military standards, promising reliability and resilience wherever deployed.

Featured Capabilities:

Counter-UAS

Defense

- RF sensors: 300 MHz–6 GHz
- Radar: X Band with fixed, alternating and continuous scan
- EO/IR/UV: 0.25 μm (UV) through visible IR
- RF Defeat: Six RF bands plus GNSS denial
Detect / Defeat Modes
- Radar: up to 60 km depending on configuration
- Simultaneous tracking of >500 targets
- RF detect: > 3 km horizontal
Detect Range
RF defeat > 1.5km horizontal

Defeat Range
16 ft telescopic mast/platform; fixed site installation with mast

Size
~7,700 lb including all sensors

Weight
240 VAC / 20 A; RJ45 Ethernet connectivity

Power

Key Features

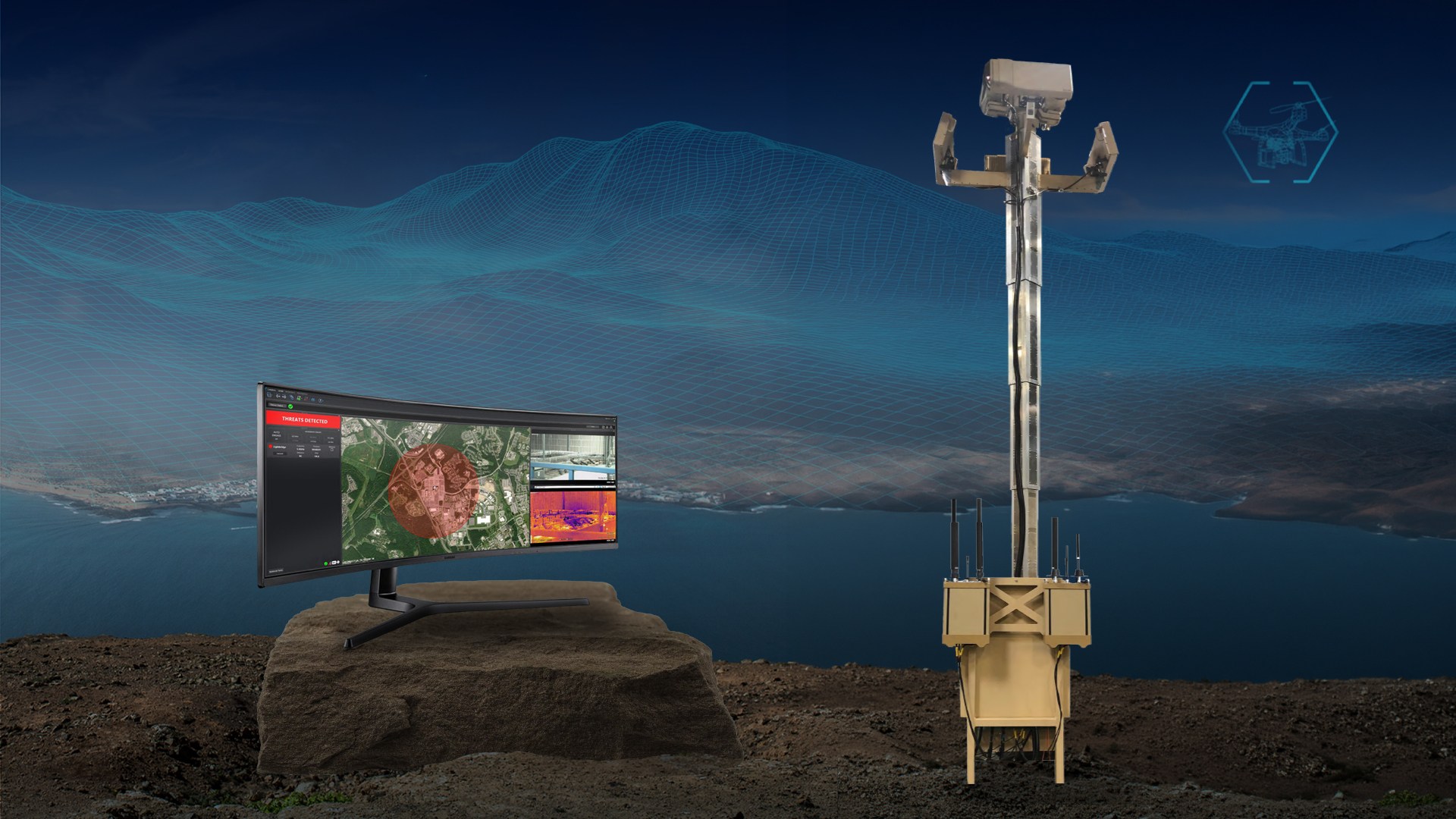

360° Situational Awareness

Titan MS delivers comprehensive fixed site protection by providing a superior command and control interface that ensures security from all directions of the protected area. True all-angle coverage and simultaneous tracking of over 500 threats simultaneously minimizes blind spots and empowers operators to respond proactively.

Full-Time Protection & Low Lifetime Cost

Titan MS can classify and mitigate multiple threats (over 500 simultaneously) simultaneously across five RF bands, radar, and optics under nearly any environmental condition. Its no-calibration, low-maintenance architecture ensures persistent defense at a low total cost of ownership.

Seamless Integration & Cross-Domain Capability

Readily integrates with other C2 platforms, leveraging secure bidirectional data exchange via API/ICD. Titan MS extends protection through connection to a wider security ecosystem, delivering flexible and scalable defense solutions for evolving operational needs.

Advanced Sensor Fusion

Combines RF sensors (vertical & horizontal polarization), X-band radar (with multiple scan modes), and EO/IR/Ultraviolet sensors for optimal detection and classification. This multi-modality ensures robust response to diverse unmanned threats in complex environments.

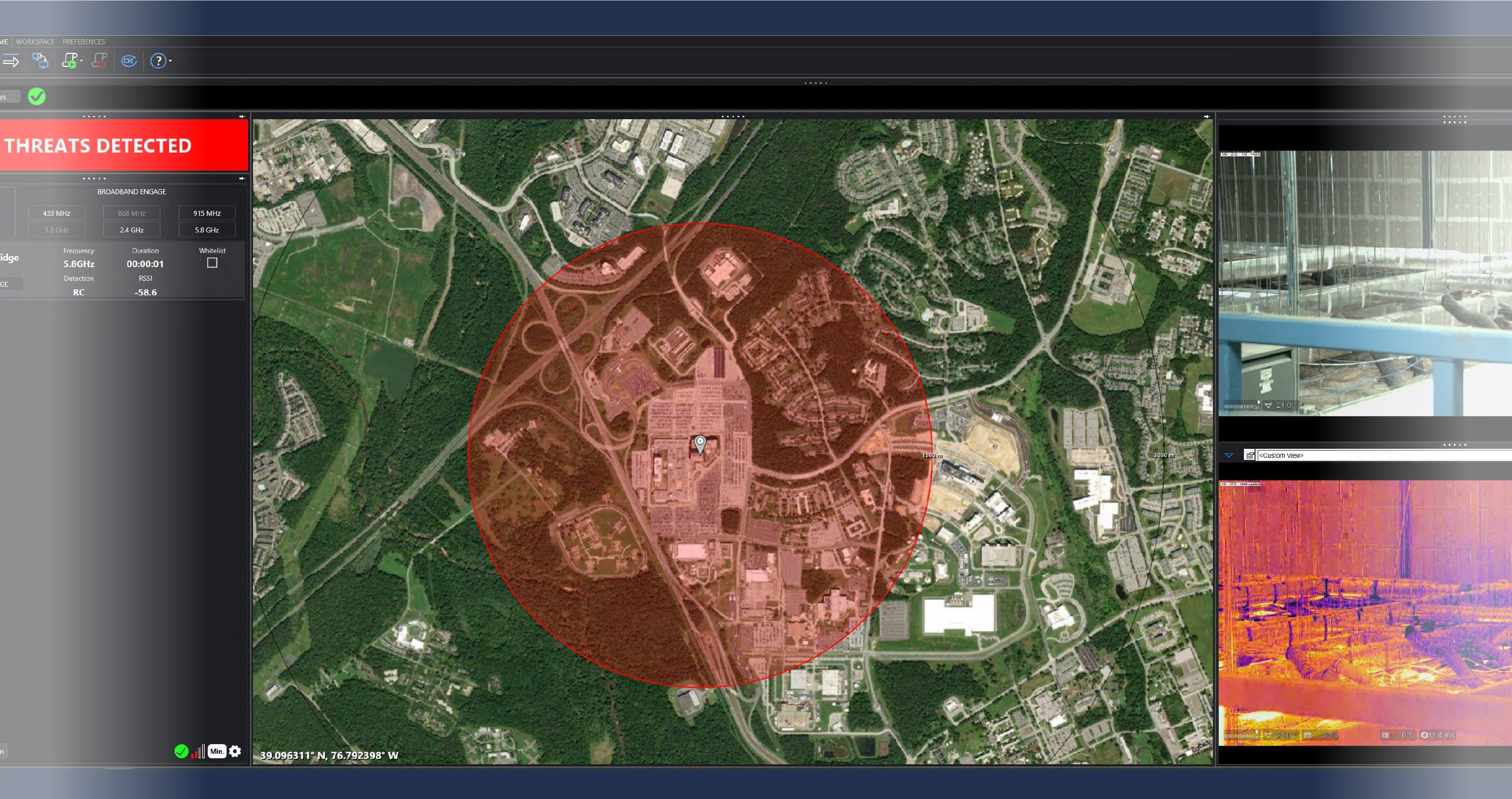

Operator Display & Control

Features a configurable 38” workstation with control, reporting, and activity log capabilities, enhancing situational intelligence and facilitating fast, effective response.

Proven Rugged & Reliable

Environmental/Engineering Standards: RF portion: Temperature: −20°C to 50°C; Ingress: IP66 / IEC 60529; Salt/Fog: MIL STD 810 method 509.6; Vibe: MIL STD 810G method 514.7C I; EMI: MIL STD 461G CE102; Safety: MIL STD 882E compliant, ATEC Safety RAC 4D / 2 ft HERP standoff.
